Kadee HO Scale #11, Bulk Pack Kadee #5 Couplers

20 pair

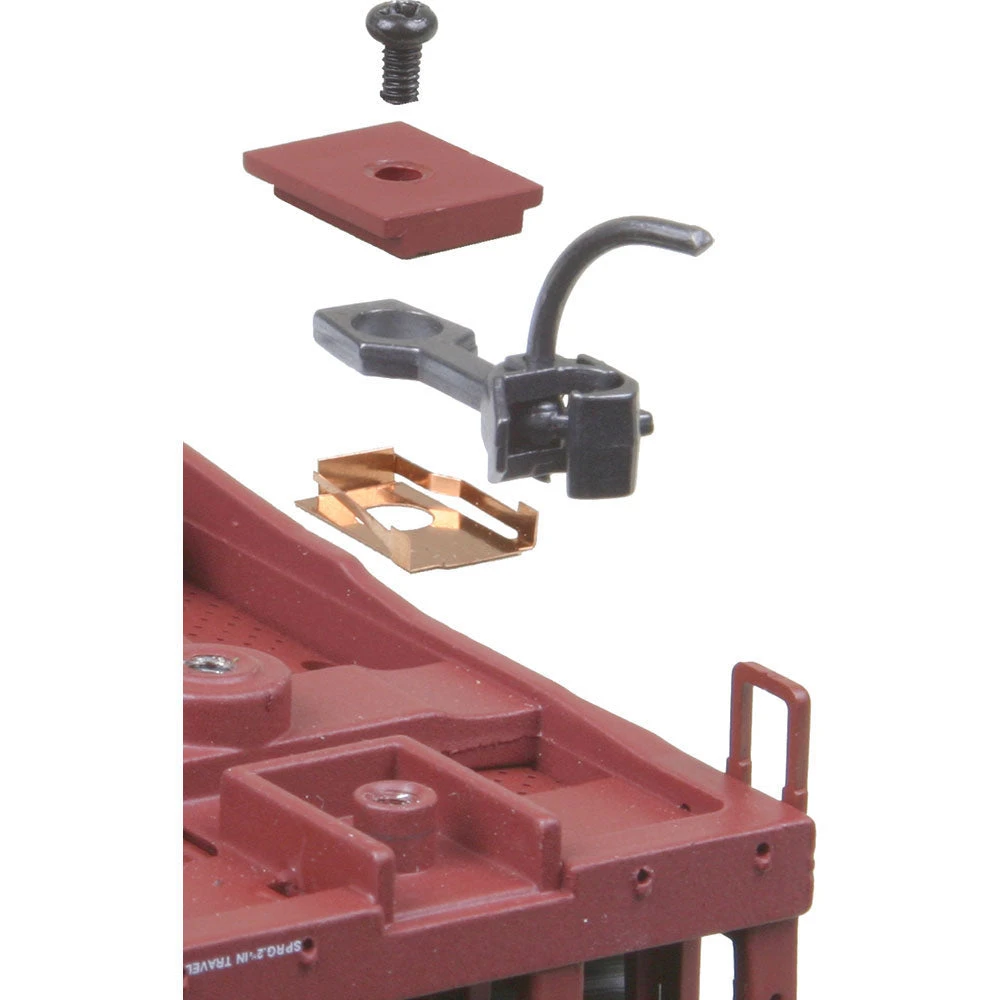

This industry leading coupler features an all metal standard coupler, and #634 standard centering spring. The NO.5® Magne-Matic® Metal Coupler may be mounted with the #213, #232, #234, #242 Gearboxes (not included) or with other manufacturers cast-on coupler pockets.

The 148 Whisker® Coupler is equivalent to the NO.5® Metal Coupler.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.

Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.

HO-Scale

Package Includes:

• (20) Pair NO.5® Metal Couplers – Medium Centerset Shank
• (20) Pair #634 Centering Spring NO.5® Style
• Extra #622 Knuckle Springs

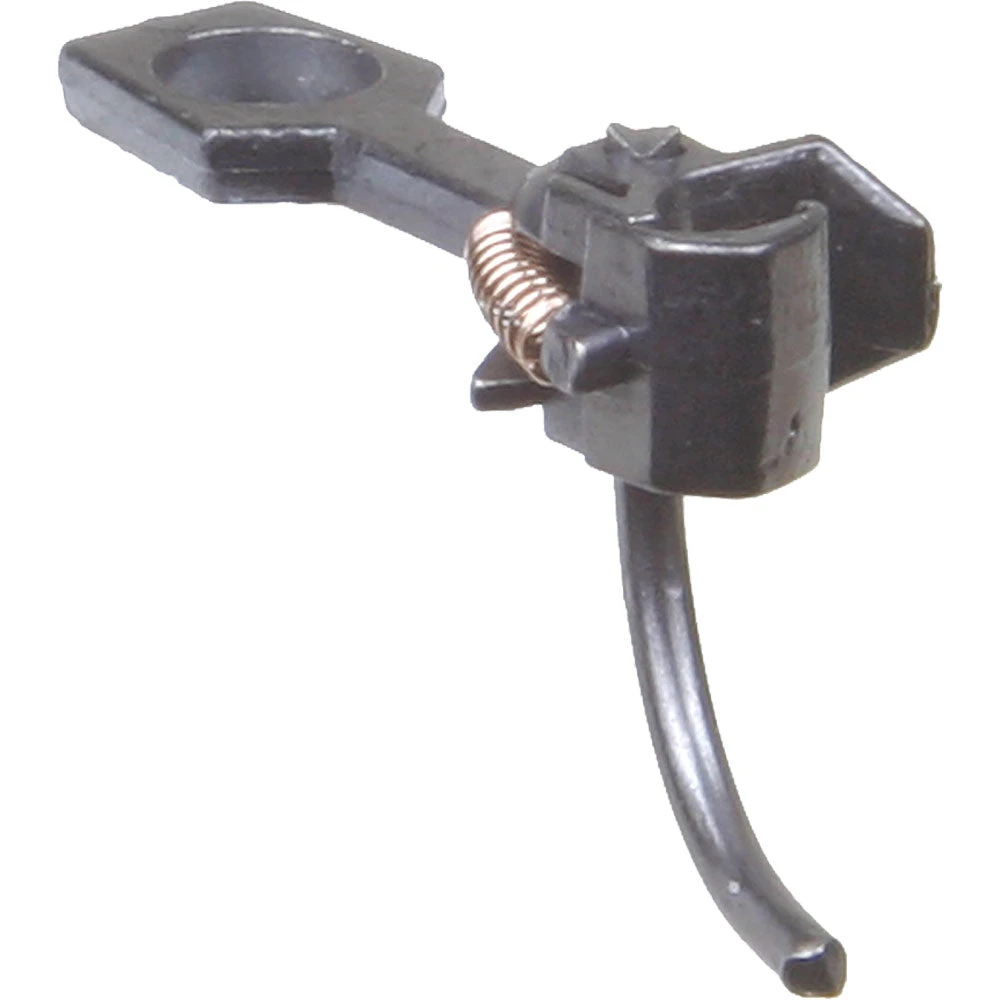

NO.5® Metal Coupler Features:

• Material – Metal

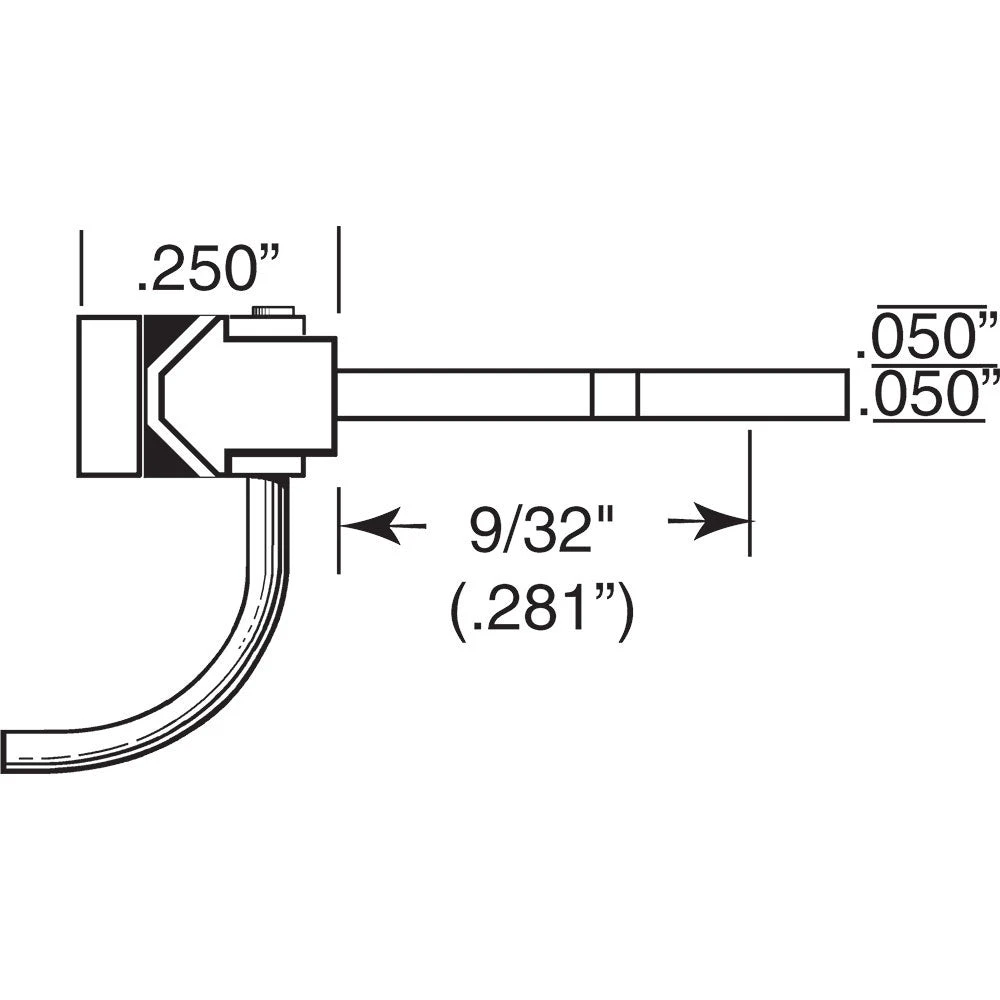

• Shank Length – Medium (9/32″) (center hole to back of coupler head)
• Coupler Offset – Centerset
• Knuckle Spring – #622
• Centering System – Standard Shank
• Centering Spring – #634 Centering Spring NO.5® Style
• Head – Standard Head
• Works In Place of – #58, #28, #118, #119, #148, #158, & most medium centerset “clone” couplers.
• Works With – #213, #232, #234, #242 draft gear boxes, & most manufacturer cast-on coupler pockets* (molded-on gearbox).

*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, a #148 Whisker® coupler should be used unsteady of a NO.5® coupler. The top of the #148 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.

Mounting Specifications:

• Mounting Height – 29/64″
• Centerline – 25/64″
• Trip Pin Height – 1/32″
• Center Hole – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
• Side Holes – 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)

NOTE: Does not include Draft Gear Boxes or Lids.
